M16-C091-RECEPTACLE
Category:M16-C091

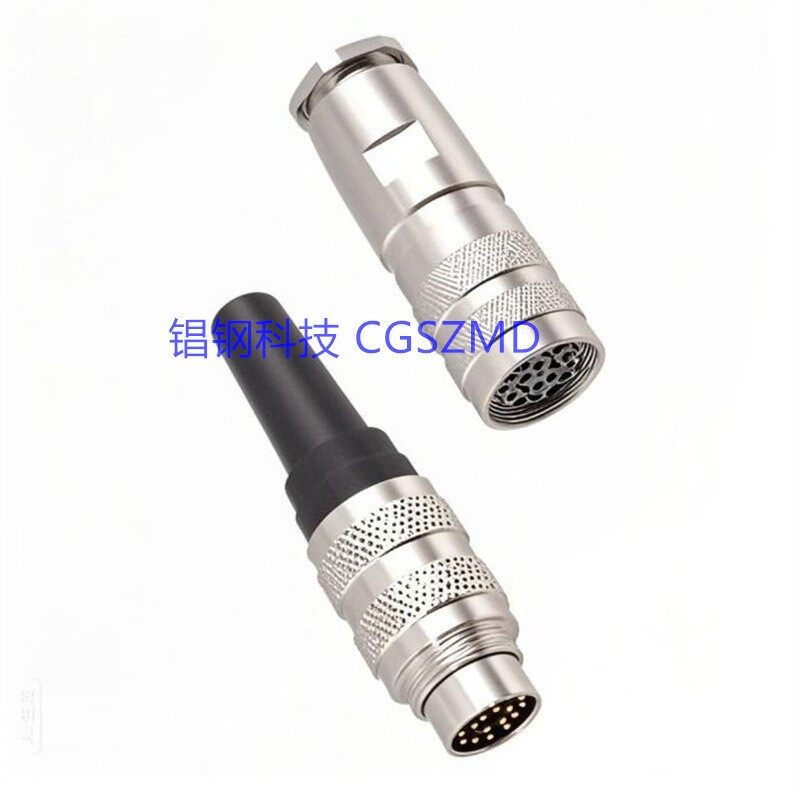

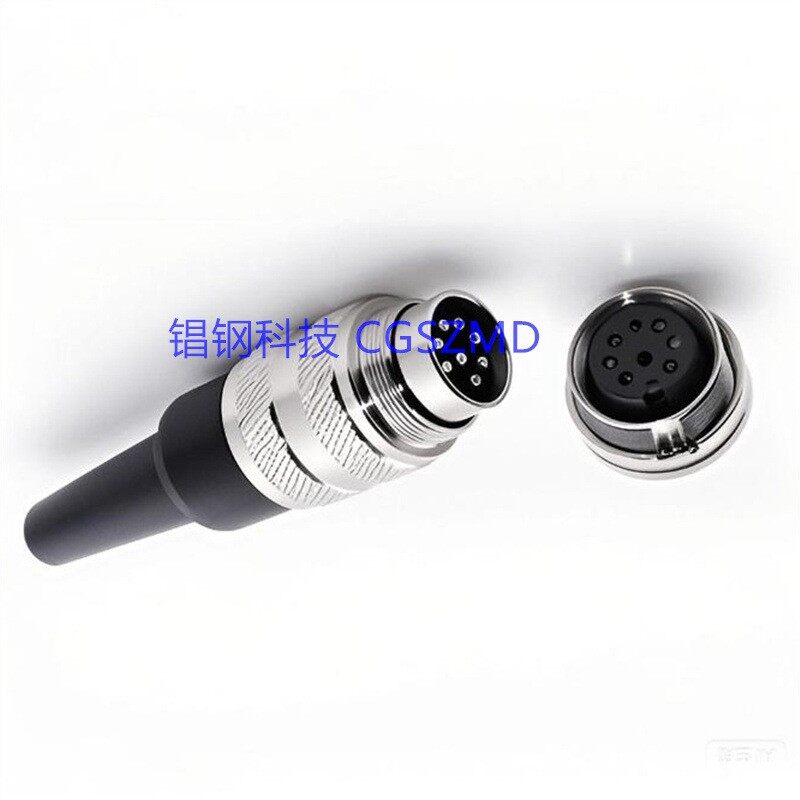

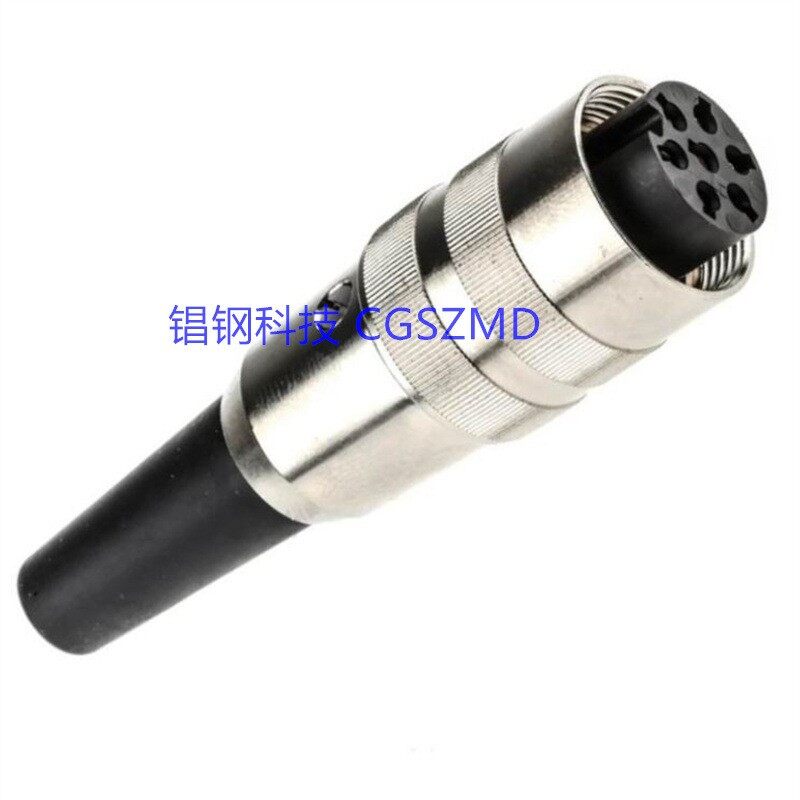

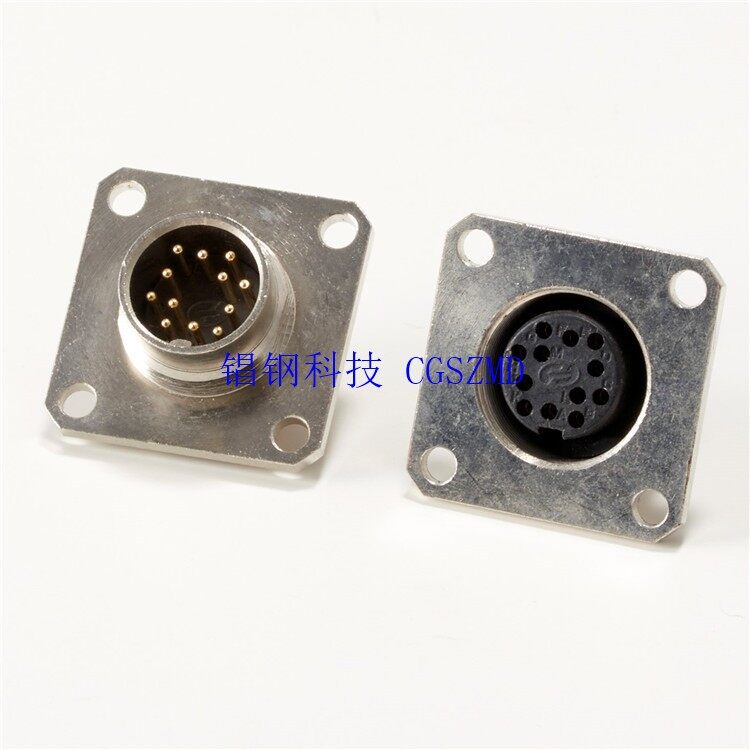

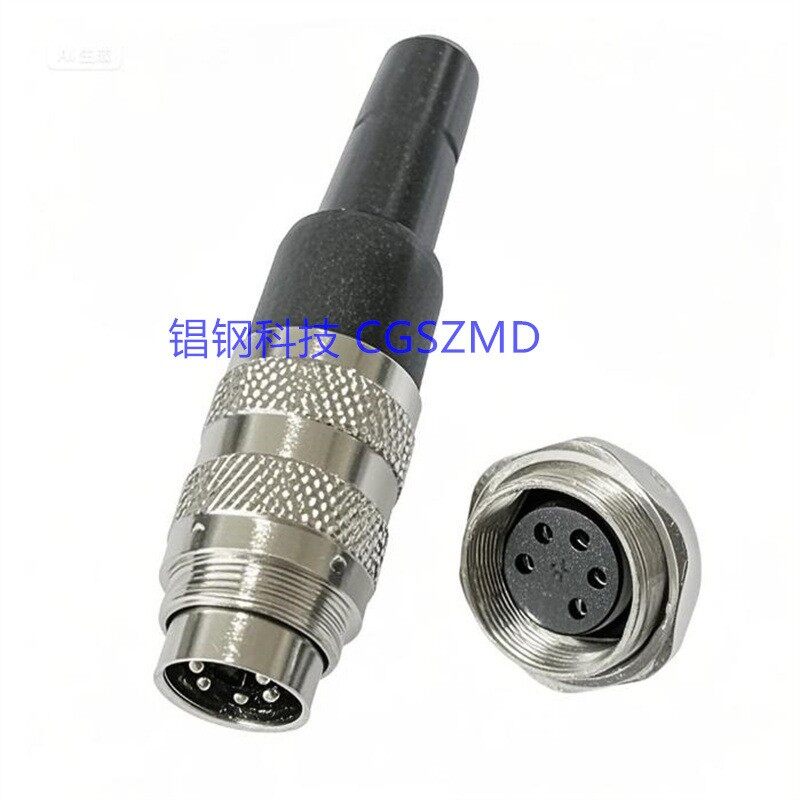

Keywords:Straight and 90° angled cable plugs, circular and square flange panel receptacles; available with 3 to 24 contacts; supports soldering or crimping termination; PG7/PG9 size accommodates various cable outer diameters.
Details

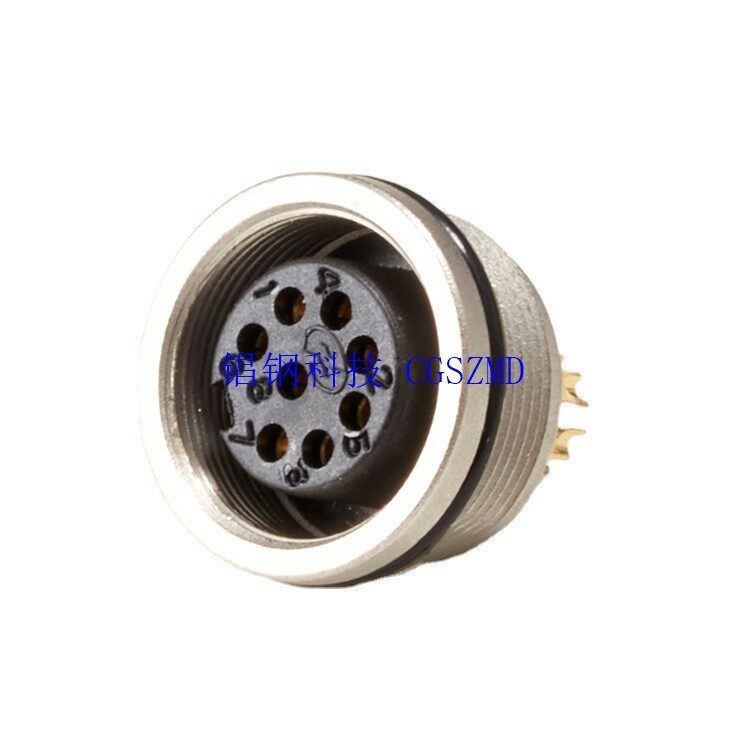

M16 C091 Series Panel-Mounted Socket (Flange Mount), featuring a nickel-plated zinc alloy housing with threaded locking. Rated IP67. Designed for equipment panel installation, used in conjunction with cable plugs. Supports 3- to 12-pin configurations with rated currents of 7A/10A and rated voltage of 250V.
Parameters:
Materials and Technical Specifications; Mechanical and Electrical Performance:
| Series | M16 C091 | Installation Method | Flange Panel Installation |
| Housing Material | Nickel-plated zinc alloy | Installation Method | Flange Panel Installation |
| Installation Method | Flange Panel Installation | Protection Rating | IP7 |
| Locking method | Thread locking | Protection Rating | IP7 |
| Protection Rating | IP7 | Rated Current | 7A/10A |
| Rated Voltage | 250V | Rated Current | 7A/10A |
| Rated Current | 7A/10A | Contact | Gold plating on copper alloy |
| Operating Temperature | -25°C~+85°C | Contact | Gold plating on copper alloy |
| Contact | Gold plating on copper alloy | ||
| Application Areas | Industrial automation, instrumentation, sensors |
